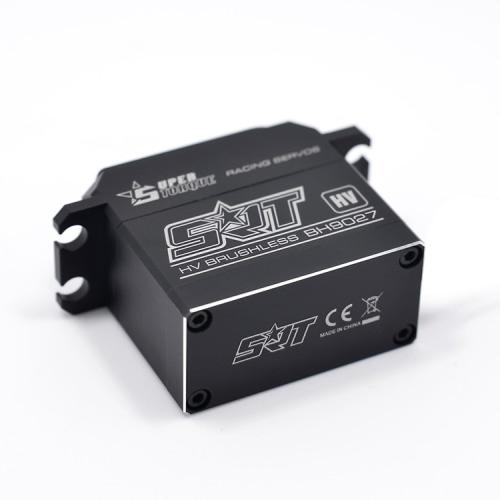

- Ideal for 1/8 on road and 1/8 off road scale applications
- Superior Holding Torque
- incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- CNC Machined aluminium case for exceptional cooling
- NMB dual main bearings
- 25T output shaft
- HD 4096 Resolution
- 2 μsec Dead Band
Application :
1/8 on road and 1/8 off road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequency: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.10 sec/60 degrees at no load
operating speed (7.4v): 0.08 sec/60 degrees at no load
operating speed (8.4v): 0.075 sec/60 degrees at no load
stall torque (6.0v): 21.0kg.cm (291.6 oz/in)
stall torque (7.4v): 25.0kg.cm (347.1 oz/in)
stall torque (8.4v): 27.0kg.cm (374.9 oz/in)
potentiometer drive: direct drive
dimensions: 40x20x38.0 mm /1.57x0.79x1.49 in
weight: 70.0g (2.47 oz)
connector wire length: jr 250 mm
|
